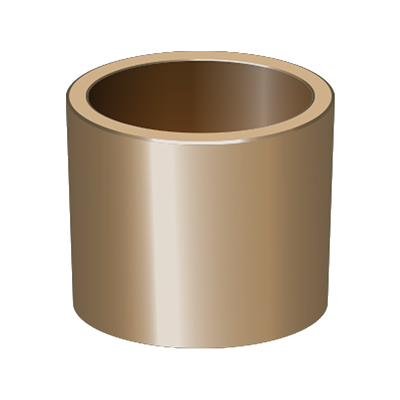

Oilite Plain Bearings from Bowman
We can supply Oilite bearings to the following metric tolerances: G7 s7, G8 s8, F7 s7 / F8 s8, G7 r6 and E7 r7. We also have a full range of imperial sizes. Our in-house machining service is able to produce non-standard sizes to suit specific customer requirements. All dimensions and tolerances of our metric ranges conform to ISO 2795:1991.
Matching Bearings
| Material | Unit Measurement | Part Number | Inner Diameter | Outer Diameter | Length | Tolerance Range | Action Button |
|---|---|---|---|---|---|---|---|
| Oilite Bearings | Metric | AM 02 05 02 | 2 | 5 | 2 | ISO 2795 | |
| Oilite Bearings | Metric | AM 02 05 03 | 2 | 5 | 3 | ISO 2795 | |
| Oilite Bearings | Metric | AM 02 05 04 | 2 | 5 | 4 | ISO 2795 | |
| Oilite Bearings | Metric | AM 03 05 03 | 3 | 5 | 3 | ISO 2795 | |
| Oilite Bearings | Metric | AM 03 05 04 | 3 | 5 | 4 | ISO 2795 | |
| Oilite Bearings | Metric | AM 03 05 06 | 3 | 5 | 6 | ISO 2795 | |
| Oilite Bearings | Metric | AM 03 06 03 | 3 | 6 | 3 | ISO 2795 | |
| Oilite Bearings | Metric | AM 03 06 04 | 3 | 6 | 4 | ISO 2795 | |
| Oilite Bearings | Metric | AM 03 06 06 | 3 | 6 | 6 | ISO 2795 | |
| Oilite Bearings | Metric | AM 04 07 03 | 4 | 7 | 3 | ISO 2795 | |
| Oilite Bearings | Metric | AM 04 07 04 | 4 | 7 | 4 | ISO 2795 | |
| Oilite Bearings | Metric | AM 04 07 06 | 4 | 7 | 6 | ISO 2795 | |
| Oilite Bearings | Metric | AM 04 08 04 | 4 | 8 | 4 | ISO 2795 | |
| Oilite Bearings | Metric | AM 04 08 06 | 4 | 8 | 6 | ISO 2795 | |
| Oilite Bearings | Metric | AM 04 08 08 | 4 | 8 | 8 | ISO 2795 | |
| Oilite Bearings | Metric | AM 04 08 12 | 4 | 8 | 12 | ISO 2795 | |
| Oilite Bearings | Metric | AM 05 08 04 | 5 | 8 | 4 | ISO 2795 | |
| Oilite Bearings | Metric | AM 05 08 05 | 5 | 8 | 5 | ISO 2795 | |
| Oilite Bearings | Metric | AM 05 08 08 | 5 | 8 | 8 | ISO 2795 | |
| Oilite Bearings | Metric | AM 05 08 10 | 5 | 8 | 10 | ISO 2795 | |
| Oilite Bearings | Metric | AM 05 08 12 | 5 | 8 | 12 | ISO 2795 | |
| Oilite Bearings | Metric | AM 05 08 16 | 5 | 8 | 16 | ISO 2795 | |
| Oilite Bearings | Metric | AM 05 09 04 | 5 | 9 | 4 | ISO 2795 | |
| Oilite Bearings | Metric | AM 05 09 05 | 5 | 9 | 5 | ISO 2795 | |
| Oilite Bearings | Metric | AM 05 09 08 | 5 | 9 | 8 | ISO 2795 | |
| Oilite Bearings | Metric | AM 06 09 04 | 6 | 9 | 4 | ISO 2795 | |
| Oilite Bearings | Metric | AM 06 09 06 | 6 | 9 | 6 | ISO 2795 | |
| Oilite Bearings | Metric | AM 06 09 10 | 6 | 9 | 10 | ISO 2795 | |
| Oilite Bearings | Metric | AM 06 09 12 | 6 | 9 | 12 | ISO 2795 | |
| Oilite Bearings | Metric | AM 06 09 16 | 6 | 9 | 16 | ISO 2795 | |
| Oilite Bearings | Metric | AM 06 10 04 | 6 | 10 | 4 | ISO 2795 | |
| Oilite Bearings | Metric | AM 06 10 06 | 6 | 10 | 6 | ISO 2795 | |
| Oilite Bearings | Metric | AM 06 10 10 | 6 | 10 | 10 | ISO 2795 | |
| Oilite Bearings | Metric | AM 06 10 12 | 6 | 10 | 12 | ISO 2795 | |
| Oilite Bearings | Metric | AM 06 10 16 | 6 | 10 | 16 | ISO 2795 | |
| Oilite Bearings | Metric | AM 07 10 05 | 7 | 10 | 5 | ISO 2795 | |
| Oilite Bearings | Metric | AM 07 10 08 | 7 | 10 | 8 | ISO 2795 | |
| Oilite Bearings | Metric | AM 07 10 10 | 7 | 10 | 10 | ISO 2795 | |
| Oilite Bearings | Metric | AM 07 11 08 | 7 | 11 | 8 | ISO 2795 | |
| Oilite Bearings | Metric | AM 07 11 10 | 7 | 11 | 10 | ISO 2795 | |
| Oilite Bearings | Metric | AM 08 11 06 | 8 | 11 | 6 | ISO 2795 | |
| Oilite Bearings | Metric | AM 08 11 08 | 8 | 11 | 8 | ISO 2795 | |
| Oilite Bearings | Metric | AM 08 11 12 | 8 | 11 | 12 | ISO 2795 | |
| Oilite Bearings | Metric | AM 08 12 06 | 8 | 12 | 6 | ISO 2795 | |
| Oilite Bearings | Metric | AM 08 12 08 | 8 | 12 | 8 | ISO 2795 | |
| Oilite Bearings | Metric | AM 08 12 12 | 8 | 12 | 12 | ISO 2795 | |
| Oilite Bearings | Metric | AM 08 12 16 | 8 | 12 | 16 | ISO 2795 | |
| Oilite Bearings | Metric | AM 08 12 20 | 8 | 12 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 08 14 08 | 8 | 14 | 8 | ISO 2795 | |
| Oilite Bearings | Metric | AM 08 14 12 | 8 | 14 | 12 | ISO 2795 | |
| Oilite Bearings | Metric | AM 08 14 16 | 8 | 14 | 16 | ISO 2795 | |
| Oilite Bearings | Metric | AM 08 14 20 | 8 | 14 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 09 12 06 | 9 | 12 | 6 | ISO 2795 | |
| Oilite Bearings | Metric | AM 09 12 10 | 9 | 12 | 10 | ISO 2795 | |
| Oilite Bearings | Metric | AM 09 12 14 | 9 | 12 | 14 | ISO 2795 | |
| Oilite Bearings | Metric | AM 09 14 06 | 9 | 14 | 6 | ISO 2795 | |
| Oilite Bearings | Metric | AM 09 14 10 | 9 | 14 | 10 | ISO 2795 | |
| Oilite Bearings | Metric | AM 09 14 14 | 9 | 14 | 14 | ISO 2795 | |
| Oilite Bearings | Metric | AM 10 13 10 | 10 | 13 | 10 | ISO 2795 | |
| Oilite Bearings | Metric | AM 10 13 16 | 10 | 13 | 16 | ISO 2795 | |
| Oilite Bearings | Metric | AM 10 14 08 | 10 | 14 | 8 | ISO 2795 | |
| Oilite Bearings | Metric | AM 10 14 10 | 10 | 14 | 10 | ISO 2795 | |
| Oilite Bearings | Metric | AM 10 14 16 | 10 | 14 | 16 | ISO 2795 | |
| Oilite Bearings | Metric | AM 10 14 20 | 10 | 14 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 10 14 25 | 10 | 14 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 10 15 10 | 10 | 15 | 10 | ISO 2795 | |
| Oilite Bearings | Metric | AM 10 15 16 | 10 | 15 | 16 | ISO 2795 | |
| Oilite Bearings | Metric | AM 10 15 20 | 10 | 15 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 10 15 25 | 10 | 15 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 10 16 08 | 10 | 16 | 8 | ISO 2795 | |
| Oilite Bearings | Metric | AM 10 16 10 | 10 | 16 | 10 | ISO 2795 | |
| Oilite Bearings | Metric | AM 10 16 16 | 10 | 16 | 16 | ISO 2795 | |
| Oilite Bearings | Metric | AM 10 16 20 | 10 | 16 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 10 16 25 | 10 | 16 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 12 15 12 | 12 | 15 | 12 | ISO 2795 | |
| Oilite Bearings | Metric | AM 12 15 16 | 12 | 15 | 16 | ISO 2795 | |
| Oilite Bearings | Metric | AM 12 15 20 | 12 | 15 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 12 15 25 | 12 | 15 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 12 16 08 | 12 | 16 | 8 | ISO 2795 | |
| Oilite Bearings | Metric | AM 12 16 12 | 12 | 16 | 12 | ISO 2795 | |
| Oilite Bearings | Metric | AM 12 16 16 | 12 | 16 | 16 | ISO 2795 | |
| Oilite Bearings | Metric | AM 12 16 20 | 12 | 16 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 12 16 25 | 12 | 16 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 12 18 08 | 12 | 18 | 8 | ISO 2795 | |
| Oilite Bearings | Metric | AM 12 18 12 | 12 | 18 | 12 | ISO 2795 | |
| Oilite Bearings | Metric | AM 12 18 16 | 12 | 18 | 16 | ISO 2795 | |
| Oilite Bearings | Metric | AM 12 18 20 | 12 | 18 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 12 18 25 | 12 | 18 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 14 18 10 | 14 | 18 | 10 | ISO 2795 | |
| Oilite Bearings | Metric | AM 14 18 14 | 14 | 18 | 14 | ISO 2795 | |
| Oilite Bearings | Metric | AM 14 18 20 | 14 | 18 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 14 20 10 | 14 | 20 | 10 | ISO 2795 | |
| Oilite Bearings | Metric | AM 14 20 14 | 14 | 20 | 14 | ISO 2795 | |
| Oilite Bearings | Metric | AM 14 20 20 | 14 | 20 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 14 20 30 | 14 | 20 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 15 19 10 | 15 | 19 | 10 | ISO 2795 | |
| Oilite Bearings | Metric | AM 15 19 15 | 15 | 19 | 15 | ISO 2795 | |
| Oilite Bearings | Metric | AM 15 19 20 | 15 | 19 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 15 19 25 | 15 | 19 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 15 19 30 | 15 | 19 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 15 21 10 | 15 | 21 | 10 | ISO 2795 | |
| Oilite Bearings | Metric | AM 15 21 15 | 15 | 21 | 15 | ISO 2795 | |
| Oilite Bearings | Metric | AM 15 21 20 | 15 | 21 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 15 21 25 | 15 | 21 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 15 22 16 | 15 | 22 | 16 | ISO 2795 | |
| Oilite Bearings | Metric | AM 15 22 20 | 15 | 22 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 15 22 30 | 15 | 22 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 16 20 12 | 16 | 20 | 12 | ISO 2795 | |
| Oilite Bearings | Metric | AM 16 20 16 | 16 | 20 | 16 | ISO 2795 | |
| Oilite Bearings | Metric | AM 16 20 20 | 16 | 20 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 16 20 25 | 16 | 20 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 16 20 30 | 16 | 20 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 16 22 12 | 16 | 22 | 12 | ISO 2795 | |
| Oilite Bearings | Metric | AM 16 22 16 | 16 | 22 | 16 | ISO 2795 | |
| Oilite Bearings | Metric | AM 16 22 20 | 16 | 22 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 16 22 25 | 16 | 22 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 16 22 30 | 16 | 22 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 18 22 12 | 18 | 22 | 12 | ISO 2795 | |
| Oilite Bearings | Metric | AM 18 22 18 | 18 | 22 | 18 | ISO 2795 | |
| Oilite Bearings | Metric | AM 18 22 20 | 18 | 22 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 18 22 30 | 18 | 22 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 18 24 12 | 18 | 24 | 12 | ISO 2795 | |
| Oilite Bearings | Metric | AM 18 24 18 | 18 | 24 | 18 | ISO 2795 | |
| Oilite Bearings | Metric | AM 18 24 30 | 18 | 24 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 18 25 12 | 18 | 25 | 12 | ISO 2795 | |
| Oilite Bearings | Metric | AM 18 25 16 | 18 | 25 | 16 | ISO 2795 | |
| Oilite Bearings | Metric | AM 18 25 20 | 18 | 25 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 18 25 22 | 18 | 25 | 22 | ISO 2795 | |
| Oilite Bearings | Metric | AM 18 25 30 | 18 | 25 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 20 24 16 | 20 | 24 | 16 | ISO 2795 | |
| Oilite Bearings | Metric | AM 20 24 20 | 20 | 24 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 20 24 25 | 20 | 24 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 20 24 32 | 20 | 24 | 32 | ISO 2795 | |
| Oilite Bearings | Metric | AM 20 25 15 | 20 | 25 | 15 | ISO 2795 | |
| Oilite Bearings | Metric | AM 20 25 20 | 20 | 25 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 20 25 25 | 20 | 25 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 20 25 30 | 20 | 25 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 20 26 15 | 20 | 26 | 15 | ISO 2795 | |
| Oilite Bearings | Metric | AM 20 26 20 | 20 | 26 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 20 26 25 | 20 | 26 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 20 26 30 | 20 | 26 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 20 28 20 | 20 | 28 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 20 28 25 | 20 | 28 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 20 28 30 | 20 | 28 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 20 28 40 | 20 | 28 | 40 | ISO 2795 | |
| Oilite Bearings | Metric | AM 20 28 50 | 20 | 28 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AM 22 27 15 | 22 | 27 | 15 | ISO 2795 | |
| Oilite Bearings | Metric | AM 22 27 20 | 22 | 27 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 22 27 25 | 22 | 27 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 22 27 35 | 22 | 27 | 35 | ISO 2795 | |
| Oilite Bearings | Metric | AM 22 28 15 | 22 | 28 | 15 | ISO 2795 | |
| Oilite Bearings | Metric | AM 22 28 20 | 22 | 28 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 22 28 25 | 22 | 28 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 22 28 28 | 22 | 28 | 28 | ISO 2795 | |
| Oilite Bearings | Metric | AM 22 28 30 | 22 | 28 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 22 32 20 | 22 | 32 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 22 32 30 | 22 | 32 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 22 32 50 | 22 | 32 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AM 25 30 20 | 25 | 30 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 25 30 25 | 25 | 30 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 25 30 30 | 25 | 30 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 25 30 50 | 25 | 30 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AM 25 32 20 | 25 | 32 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 25 32 25 | 25 | 32 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 25 32 30 | 25 | 32 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 25 32 35 | 25 | 32 | 35 | ISO 2795 | |
| Oilite Bearings | Metric | AM 25 32 40 | 25 | 32 | 40 | ISO 2795 | |
| Oilite Bearings | Metric | AM 25 35 25 | 25 | 35 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 25 35 35 | 25 | 35 | 35 | ISO 2795 | |
| Oilite Bearings | Metric | AM 25 35 50 | 25 | 35 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AM 28 33 20 | 28 | 33 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 28 33 30 | 28 | 33 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 28 36 20 | 28 | 36 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 28 36 25 | 28 | 36 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 28 36 30 | 28 | 36 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 28 36 40 | 28 | 36 | 40 | ISO 2795 | |
| Oilite Bearings | Metric | AM 30 35 20 | 30 | 35 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 30 35 25 | 30 | 35 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 30 35 30 | 30 | 35 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 30 38 20 | 30 | 38 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 30 38 25 | 30 | 38 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 30 38 30 | 30 | 38 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 30 38 40 | 30 | 38 | 40 | ISO 2795 | |
| Oilite Bearings | Metric | AM 30 40 25 | 30 | 40 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 30 40 35 | 30 | 40 | 35 | ISO 2795 | |
| Oilite Bearings | Metric | AM 30 40 40 | 30 | 40 | 40 | ISO 2795 | |
| Oilite Bearings | Metric | AM 30 40 45 | 30 | 40 | 45 | ISO 2795 | |
| Oilite Bearings | Metric | AM 30 40 50 | 30 | 40 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AM 30 40 60 | 30 | 40 | 60 | ISO 2795 | |
| Oilite Bearings | Metric | AM 32 38 20 | 32 | 38 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 32 38 25 | 32 | 38 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 32 38 30 | 32 | 38 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 32 38 40 | 32 | 38 | 40 | ISO 2795 | |
| Oilite Bearings | Metric | AM 32 40 20 | 32 | 40 | 20 | ISO 2795 | |
| Oilite Bearings | Metric | AM 32 40 25 | 32 | 40 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 32 40 30 | 32 | 40 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 32 40 40 | 32 | 40 | 40 | ISO 2795 | |
| Oilite Bearings | Metric | AM 32 40 50 | 32 | 40 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AM 35 41 25 | 35 | 41 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 35 41 35 | 35 | 41 | 35 | ISO 2795 | |
| Oilite Bearings | Metric | AM 35 41 40 | 35 | 41 | 40 | ISO 2795 | |
| Oilite Bearings | Metric | AM 35 44 22 | 35 | 44 | 22 | ISO 2795 | |
| Oilite Bearings | Metric | AM 35 44 28 | 35 | 44 | 28 | ISO 2795 | |
| Oilite Bearings | Metric | AM 35 44 35 | 35 | 44 | 35 | ISO 2795 | |
| Oilite Bearings | Metric | AM 35 45 25 | 35 | 45 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 35 45 35 | 35 | 45 | 35 | ISO 2795 | |
| Oilite Bearings | Metric | AM 35 45 40 | 35 | 45 | 40 | ISO 2795 | |
| Oilite Bearings | Metric | AM 35 45 50 | 35 | 45 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AM 35 45 70 | 35 | 45 | 70 | ISO 2795 | |
| Oilite Bearings | Metric | AM 36 42 22 | 36 | 42 | 22 | ISO 2795 | |
| Oilite Bearings | Metric | AM 36 42 28 | 36 | 42 | 28 | ISO 2795 | |
| Oilite Bearings | Metric | AM 36 42 36 | 36 | 42 | 36 | ISO 2795 | |
| Oilite Bearings | Metric | AM 36 42 45 | 36 | 42 | 45 | ISO 2795 | |
| Oilite Bearings | Metric | AM 36 45 22 | 36 | 45 | 22 | ISO 2795 | |
| Oilite Bearings | Metric | AM 36 45 28 | 36 | 45 | 28 | ISO 2795 | |
| Oilite Bearings | Metric | AM 36 45 36 | 36 | 45 | 36 | ISO 2795 | |
| Oilite Bearings | Metric | AM 36 45 45 | 36 | 45 | 45 | ISO 2795 | |
| Oilite Bearings | Metric | AM 38 44 25 | 38 | 44 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 38 44 35 | 38 | 44 | 35 | ISO 2795 | |
| Oilite Bearings | Metric | AM 38 44 45 | 38 | 44 | 45 | ISO 2795 | |
| Oilite Bearings | Metric | AM 38 48 35 | 38 | 48 | 35 | ISO 2795 | |
| Oilite Bearings | Metric | AM 38 48 45 | 38 | 48 | 45 | ISO 2795 | |
| Oilite Bearings | Metric | AM 38 48 55 | 38 | 48 | 55 | ISO 2795 | |
| Oilite Bearings | Metric | AM 40 46 30 | 40 | 46 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 40 46 40 | 40 | 46 | 40 | ISO 2795 | |
| Oilite Bearings | Metric | AM 40 46 50 | 40 | 46 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AM 40 50 25 | 40 | 50 | 25 | ISO 2795 | |
| Oilite Bearings | Metric | AM 40 50 30 | 40 | 50 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 40 50 32 | 40 | 50 | 32 | ISO 2795 | |
| Oilite Bearings | Metric | AM 40 50 35 | 40 | 50 | 35 | ISO 2795 | |
| Oilite Bearings | Metric | AM 40 50 40 | 40 | 50 | 40 | ISO 2795 | |
| Oilite Bearings | Metric | AM 40 50 50 | 40 | 50 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AM 40 50 60 | 40 | 50 | 60 | ISO 2795 | |
| Oilite Bearings | Metric | AM 40 50 80 | 40 | 50 | 80 | ISO 2795 | |
| Oilite Bearings | Metric | AM 42 48 40 | 42 | 48 | 40 | ISO 2795 | |
| Oilite Bearings | Metric | AM 42 48 50 M | 42 | 48 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AM 42 52 40 | 42 | 52 | 40 | ISO 2795 | |
| Oilite Bearings | Metric | AM 42 52 50 | 42 | 52 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AM 42 52 60 | 42 | 52 | 60 | ISO 2795 | |
| Oilite Bearings | Metric | AM 45 51 35 | 45 | 51 | 35 | ISO 2795 | |
| Oilite Bearings | Metric | AM 45 51 45 | 45 | 51 | 45 | ISO 2795 | |
| Oilite Bearings | Metric | AM 45 51 55 | 45 | 51 | 55 | ISO 2795 | |
| Oilite Bearings | Metric | AM 45 55 35 | 45 | 55 | 35 | ISO 2795 | |
| Oilite Bearings | Metric | AM 45 55 45 | 45 | 55 | 45 | ISO 2795 | |
| Oilite Bearings | Metric | AM 45 55 55 | 45 | 55 | 55 | ISO 2795 | |
| Oilite Bearings | Metric | AM 45 55 65 | 45 | 55 | 65 | ISO 2795 | |
| Oilite Bearings | Metric | AM 45 55 75 | 45 | 55 | 75 | ISO 2795 | |
| Oilite Bearings | Metric | AM 45 56 28 | 45 | 56 | 28 | ISO 2795 | |
| Oilite Bearings | Metric | AM 45 56 45 | 45 | 56 | 45 | ISO 2795 | |
| Oilite Bearings | Metric | AM 45 56 56 | 45 | 56 | 56 | ISO 2795 | |
| Oilite Bearings | Metric | AM 48 55 50 | 48 | 55 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AM 48 58 50 | 48 | 58 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AM 50 58 35 | 50 | 58 | 35 | ISO 2795 | |
| Oilite Bearings | Metric | AM 50 58 50 | 50 | 58 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AM 50 60 100 | 50 | 60 | 100 | ISO 2795 | |
| Oilite Bearings | Metric | AM 50 60 30 | 50 | 60 | 30 | ISO 2795 | |
| Oilite Bearings | Metric | AM 50 60 35 | 50 | 60 | 35 | ISO 2795 | |
| Oilite Bearings | Metric | AM 50 60 40 | 50 | 60 | 40 | ISO 2795 | |
| Oilite Bearings | Metric | AM 50 60 50 | 50 | 60 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AM 50 60 63 | 50 | 60 | 63 | ISO 2795 | |
| Oilite Bearings | Metric | AM 50 60 70 | 50 | 60 | 70 | ISO 2795 | |
| Oilite Bearings | Metric | AM 50 60 75 | 50 | 60 | 75 | ISO 2795 | |
| Oilite Bearings | Metric | AM 55 63 40 | 55 | 63 | 40 | ISO 2795 | |
| Oilite Bearings | Metric | AM 55 63 55 | 55 | 63 | 55 | ISO 2795 | |
| Oilite Bearings | Metric | AM 55 65 40 | 55 | 65 | 40 | ISO 2795 | |
| Oilite Bearings | Metric | AM 55 65 55 | 55 | 65 | 55 | ISO 2795 | |
| Oilite Bearings | Metric | AM 55 65 70 | 55 | 65 | 70 | ISO 2795 | |
| Oilite Bearings | Metric | AM 60 68 50 | 60 | 68 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AM 60 68 60 | 60 | 68 | 60 | ISO 2795 | |
| Oilite Bearings | Metric | AM 60 68 70 | 60 | 68 | 70 | ISO 2795 | |
| Oilite Bearings | Metric | AM 60 70 120 | 60 | 70 | 120 | ISO 2795 | |
| Oilite Bearings | Metric | AM 60 70 50 | 60 | 70 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AM 60 70 60 | 60 | 70 | 60 | ISO 2795 | |
| Oilite Bearings | Metric | AM 60 72 50 | 60 | 72 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AM 60 72 60 | 60 | 72 | 60 | ISO 2795 | |
| Oilite Bearings | Metric | AM 60 72 70 | 60 | 72 | 70 | ISO 2795 | |
| Oilite Bearings | Metric | AM 63 70 40 | 63 | 70 | 40 | ISO 2795 | |
| Oilite Bearings | Metric | AM 63 70 50 | 63 | 70 | 50 | ISO 2795 | |
| Oilite Bearings | Metric | AD 03 06 07 | 3 | 6 | 7 | DIN 1850 | |
| Oilite Bearings | Metric | AD 05 09 10 | 5 | 9 | 10 | DIN 1850 | |
| Oilite Bearings | Metric | AD 06 10 10 | 6 | 10 | 10 | DIN 1850 | |
| Oilite Bearings | Metric | AD 06 12 12 | 6 | 12 | 12 | DIN 1850 | |
| Oilite Bearings | Metric | AD 08 12 08 | 8 | 12 | 8 | DIN 1850 | |
| Oilite Bearings | Metric | AD 08 12 15 | 8 | 12 | 15 | DIN 1850 | |
| Oilite Bearings | Metric | AD 10 16 10 | 10 | 16 | 10 | DIN 1850 | |
| Oilite Bearings | Metric | AD 10 16 15 | 10 | 16 | 15 | DIN 1850 | |
| Oilite Bearings | Metric | AD 10 16 20 | 10 | 16 | 20 | DIN 1850 | |
| Oilite Bearings | Metric | AD 12 18 10 | 12 | 18 | 10 | DIN 1850 | |
| Oilite Bearings | Metric | AD 12 18 15 | 12 | 18 | 15 | DIN 1850 | |
| Oilite Bearings | Metric | AD 14 20 20 | 14 | 20 | 20 | DIN 1850 | |
| Oilite Bearings | Metric | AD 15 20 15 | 15 | 20 | 15 | DIN 1850 | |
| Oilite Bearings | Metric | AD 16 20 25 | 16 | 20 | 25 | DIN 1850 | |
| Oilite Bearings | Metric | AD 16 22 25 | 16 | 22 | 25 | DIN 1850 | |
| Oilite Bearings | Metric | AD 18 25 25 | 18 | 25 | 25 | DIN 1850 | |
| Oilite Bearings | Metric | AD 20 26 20 | 20 | 26 | 20 | DIN 1850 | |
| Oilite Bearings | Metric | AD 20 26 30 | 20 | 26 | 30 | DIN 1850 | |
| Oilite Bearings | Metric | AD 22 28 20 | 22 | 28 | 20 | DIN 1850 | |
| Oilite Bearings | Metric | AD 22 28 30 | 22 | 28 | 30 | DIN 1850 | |
| Oilite Bearings | Metric | AD 25 32 25 | 25 | 32 | 25 | DIN 1850 | |
| Oilite Bearings | Metric | AD 25 32 35 | 25 | 32 | 35 | DIN 1850 | |
| Oilite Bearings | Metric | AD 28 36 25 | 28 | 36 | 25 | DIN 1850 | |
| Oilite Bearings | Metric | AD 28 36 35 | 28 | 36 | 35 | DIN 1850 | |
| Oilite Bearings | Metric | AD 30 34 30 | 30 | 34 | 30 | DIN 1850 | |
| Oilite Bearings | Metric | AD 30 34 40 | 30 | 34 | 40 | DIN 1850 | |
| Oilite Bearings | Metric | AD 32 40 40 | 32 | 40 | 40 | DIN 1850 | |
| Oilite Bearings | Metric | AD 35 45 35 | 35 | 45 | 35 | DIN 1850 | |
| Oilite Bearings | Metric | AD 35 45 45 | 35 | 45 | 45 | DIN 1850 | |
| Oilite Bearings | Metric | AD 40 50 50 | 40 | 50 | 50 | DIN 1850 | |
| Oilite Bearings | Metric | AD 45 50 35 | 45 | 50 | 35 | DIN 1850 | |
| Oilite Bearings | Metric | AD 50 60 50 | 50 | 60 | 50 | DIN 1850 | |
| Oilite Bearings | Metric | AS 02 04 04 | 2 | 4 | 4 | Scandinavian | |
| Oilite Bearings | Metric | AS 03 08 04 | 3 | 8 | 4 | Scandinavian | |
| Oilite Bearings | Metric | AS 04 10 08 | 4 | 10 | 8 | Scandinavian | |
| Oilite Bearings | Metric | AS 05 10 10 | 5 | 10 | 10 | Scandinavian | |
| Oilite Bearings | Metric | AS 05 10 06 | 5 | 10 | 6 | Scandinavian | |
| Oilite Bearings | Metric | AS 05 10 08 | 5 | 10 | 8 | Scandinavian | |
| Oilite Bearings | Metric | AS 05 12 10 | 5 | 12 | 10 | Scandinavian | |
| Oilite Bearings | Metric | AS 06 12 12 | 6 | 12 | 12 | Scandinavian | |
| Oilite Bearings | Metric | AS 06 12 06 | 6 | 12 | 6 | Scandinavian | |
| Oilite Bearings | Metric | AS 06 12 08 | 6 | 12 | 8 | Scandinavian | |
| Oilite Bearings | Metric | AS 06 14 12 | 6 | 14 | 12 | Scandinavian | |
| Oilite Bearings | Metric | AS 10 22 20 | 10 | 22 | 20 | Scandinavian | |
| Oilite Bearings | Metric | AS 12 25 25 | 12 | 25 | 25 | Scandinavian | |
| Oilite Bearings | Metric | AS 14 28 30 | 14 | 28 | 30 | Scandinavian | |
| Oilite Bearings | Metric | AS 15 20 10 | 15 | 20 | 10 | Scandinavian | |
| Oilite Bearings | Metric | AS 15 20 15 | 15 | 20 | 15 | Scandinavian | |
| Oilite Bearings | Metric | AS 15 20 20 | 15 | 20 | 20 | Scandinavian | |
| Oilite Bearings | Metric | AS 15 20 25 | 15 | 20 | 25 | Scandinavian | |
| Oilite Bearings | Metric | AS 15 20 30 | 15 | 20 | 30 | Scandinavian | |
| Oilite Bearings | Metric | AS 15 30 30 | 15 | 30 | 30 | Scandinavian | |
| Oilite Bearings | Metric | AS 16 32 30 | 16 | 32 | 30 | Scandinavian | |
| Oilite Bearings | Metric | AS 18 35 30 | 18 | 35 | 30 | Scandinavian | |
| Oilite Bearings | Metric | AS 20 40 40 | 20 | 40 | 40 | Scandinavian | |
| Oilite Bearings | Metric | AS 25 45 35 | 25 | 45 | 35 | Scandinavian | |
| Oilite Bearings | Metric | AS 30 50 60 | 30 | 50 | 60 | Scandinavian | |
| Oilite Bearings | Metric | AS 45 65 80 | 45 | 65 | 80 | Scandinavian | |
| Oilite Bearings | Metric | AS 50 70 70 | 50 | 70 | 70 | Scandinavian | |
| Oilite Bearings | Metric | AS 55 70 70 | 55 | 70 | 70 | Scandinavian | |
| Oilite Bearings | Metric | AS 60 75 60 | 60 | 75 | 60 | Scandinavian | |
| Oilite Bearings | Metric | AS 60 75 90 | 60 | 75 | 90 | Scandinavian | |
| Oilite Bearings | Metric | AS 60 80 120 | 60 | 80 | 120 | Scandinavian | |
| Oilite Bearings | Metric | AS 60 85 90 | 60 | 85 | 90 | Scandinavian | |
| Oilite Bearings | Metric | AS 65 75 60 | 65 | 75 | 60 | Scandinavian | |
| Oilite Bearings | Metric | AS 65 75 90 | 65 | 75 | 90 | Scandinavian | |
| Oilite Bearings | Metric | AS 65 80 60 | 65 | 80 | 60 | Scandinavian | |
| Oilite Bearings | Metric | AS 65 80 90 | 65 | 80 | 90 | Scandinavian | |
| Oilite Bearings | Metric | AS 70 80 120 | 70 | 80 | 120 | Scandinavian | |
| Oilite Bearings | Metric | AS 70 80 60 | 70 | 80 | 60 | Scandinavian | |
| Oilite Bearings | Metric | AS 70 80 90 | 70 | 80 | 90 | Scandinavian | |
| Oilite Bearings | Metric | AS 70 85 60 | 70 | 85 | 60 | Scandinavian | |
| Oilite Bearings | Metric | AS 70 85 90 | 70 | 85 | 90 | Scandinavian | |
| Oilite Bearings | Metric | AS 75 100 100 | 75 | 100 | 100 | Scandinavian | |
| Oilite Bearings | Metric | AS 75 85 100 | 75 | 85 | 100 | Scandinavian | |
| Oilite Bearings | Metric | AS 75 85 70 | 75 | 85 | 70 | Scandinavian | |
| Oilite Bearings | Metric | AS 75 90 100 | 75 | 90 | 100 | Scandinavian | |
| Oilite Bearings | Metric | AS 75 90 70 | 75 | 90 | 70 | Scandinavian | |
| Oilite Bearings | Metric | AS 80 100 120 | 80 | 100 | 120 | Scandinavian | |
| Oilite Bearings | Metric | AS 80 105 100 | 80 | 105 | 100 | Scandinavian | |
| Oilite Bearings | Metric | AS 80 90 100 | 80 | 90 | 100 | Scandinavian | |
| Oilite Bearings | Metric | AS 80 90 70 | 80 | 90 | 70 | Scandinavian | |
| Oilite Bearings | Metric | AS 80 95 100 | 80 | 95 | 100 | Scandinavian | |
| Oilite Bearings | Metric | AS 80 95 70 | 80 | 95 | 70 | Scandinavian | |
| Oilite Bearings | Metric | AS 85 100 100 | 85 | 100 | 100 | Scandinavian | |
| Oilite Bearings | Metric | AS 85 95 100 | 85 | 95 | 100 | Scandinavian | |
| Oilite Bearings | Metric | AS 90 105 80 | 90 | 10 | 80 | Scandinavian | |
| Oilite Bearings | Metric | AS 90 110 80 | 90 | 110 | 80 | Scandinavian | |
| Oilite Bearings | Metric | AS 100 120 100 | 100 | 120 | 100 | Scandinavian | |
| Oilite Bearings | Metric | AS 100 120 120 | 100 | 120 | 120 | Scandinavian | |
| Oilite Bearings | Metric | AS 100 120 80 | 100 | 120 | 80 | Scandinavian | |
| Oilite Bearings | Metric | AF 02 05 02 | 2 | 5 | 2 | French | |
| Oilite Bearings | Metric | AF 02 05 03 | 2 | 5 | 3 | French | |
| Oilite Bearings | Metric | AF 03 06 04 | 3 | 6 | 4 | French | |
| Oilite Bearings | Metric | AF 03 06 06 | 3 | 6 | 6 | French | |
| Oilite Bearings | Metric | AF 03 06 10 | 3 | 6 | 10 | French | |
| Oilite Bearings | Metric | AF 04 07 04 | 4 | 7 | 4 | French | |
| Oilite Bearings | Metric | AF 04 07 08 | 4 | 7 | 8 | French | |
| Oilite Bearings | Metric | AF 04 07 12 | 4 | 7 | 12 | French | |
| Oilite Bearings | Metric | AF 04 08 04 | 4 | 8 | 4 | French | |
| Oilite Bearings | Metric | AF 04 08 08 | 4 | 8 | 8 | French | |
| Oilite Bearings | Metric | AF 04 08 12 | 4 | 8 | 12 | French | |
| Oilite Bearings | Metric | AF 05 08 05 | 5 | 8 | 5 | French | |
| Oilite Bearings | Metric | AF 05 08 08 | 5 | 8 | 8 | French | |
| Oilite Bearings | Metric | AF 05 08 10 | 5 | 8 | 10 | French | |
| Oilite Bearings | Metric | AF 05 08 12 | 5 | 8 | 12 | French | |
| Oilite Bearings | Metric | AF 05 08 16 | 5 | 8 | 16 | French | |
| Oilite Bearings | Metric | AF 05 09 04 | 5 | 9 | 4 | French | |
| Oilite Bearings | Metric | AF 05 09 05 | 5 | 9 | 5 | French | |
| Oilite Bearings | Metric | AF 05 09 08 | 5 | 9 | 8 | French | |
| Oilite Bearings | Metric | AF 06 09 06 | 6 | 9 | 6 | French | |
| Oilite Bearings | Metric | AF 06 09 10 | 6 | 9 | 10 | French | |
| Oilite Bearings | Metric | AF 06 09 12 | 6 | 9 | 12 | French | |
| Oilite Bearings | Metric | AF 06 09 16 | 6 | 9 | 16 | French | |
| Oilite Bearings | Metric | AF 06 10 06 | 6 | 10 | 6 | French | |
| Oilite Bearings | Metric | AF 06 10 10 | 6 | 10 | 10 | French | |
| Oilite Bearings | Metric | AF 06 10 12 | 6 | 10 | 12 | French | |
| Oilite Bearings | Metric | AF 06 10 16 | 6 | 10 | 16 | French | |
| Oilite Bearings | Metric | AF 06 12 06 | 6 | 12 | 6 | French | |
| Oilite Bearings | Metric | AF 06 12 10 | 6 | 12 | 10 | French | |
| Oilite Bearings | Metric | AF 06 12 12 | 6 | 12 | 12 | French | |
| Oilite Bearings | Metric | AF 06 12 16 | 6 | 12 | 16 | French | |
| Oilite Bearings | Metric | AF 07 10 05 | 7 | 10 | 5 | French | |
| Oilite Bearings | Metric | AF 07 10 08 | 7 | 10 | 8 | French | |
| Oilite Bearings | Metric | AF 07 10 10 | 7 | 10 | 10 | French | |
| Oilite Bearings | Metric | AF 08 11 08 | 8 | 11 | 8 | French | |
| Oilite Bearings | Metric | AF 08 11 12 | 8 | 11 | 12 | French | |
| Oilite Bearings | Metric | AF 08 11 16 | 8 | 11 | 16 | French | |
| Oilite Bearings | Metric | AF 08 11 20 | 8 | 11 | 20 | French | |
| Oilite Bearings | Metric | AF 08 12 08 | 8 | 12 | 8 | French | |
| Oilite Bearings | Metric | AF 08 12 12 | 8 | 12 | 12 | French | |
| Oilite Bearings | Metric | AF 08 12 16 | 8 | 12 | 16 | French | |
| Oilite Bearings | Metric | AF 08 12 20 | 8 | 12 | 20 | French | |
| Oilite Bearings | Metric | AF 08 14 08 | 8 | 14 | 8 | French | |
| Oilite Bearings | Metric | AF 08 14 12 | 8 | 14 | 12 | French | |
| Oilite Bearings | Metric | AF 08 14 16 | 8 | 14 | 16 | French | |
| Oilite Bearings | Metric | AF 08 14 20 | 8 | 14 | 20 | French | |
| Oilite Bearings | Metric | AF 09 12 06 | 9 | 12 | 6 | French | |
| Oilite Bearings | Metric | AF 09 12 10 | 9 | 12 | 10 | French | |
| Oilite Bearings | Metric | AF 09 12 14 | 9 | 12 | 14 | French | |
| Oilite Bearings | Metric | AF 10 13 10 | 10 | 13 | 10 | French | |
| Oilite Bearings | Metric | AF 10 13 16 | 10 | 13 | 16 | French | |
| Oilite Bearings | Metric | AF 10 13 20 | 10 | 13 | 20 | French | |
| Oilite Bearings | Metric | AF 10 13 25 | 10 | 13 | 25 | French | |
| Oilite Bearings | Metric | AF 10 14 10 | 10 | 14 | 10 | French | |
| Oilite Bearings | Metric | AF 10 14 16 | 10 | 14 | 16 | French | |
| Oilite Bearings | Metric | AF 10 14 20 | 10 | 14 | 20 | French | |
| Oilite Bearings | Metric | AF 10 14 25 | 10 | 14 | 25 | French | |
| Oilite Bearings | Metric | AF 10 15 10 | 10 | 15 | 10 | French | |
| Oilite Bearings | Metric | AF 10 15 16 | 10 | 15 | 16 | French | |
| Oilite Bearings | Metric | AF 10 15 20 | 10 | 15 | 20 | French | |
| Oilite Bearings | Metric | AF 10 15 25 | 10 | 15 | 25 | French | |
| Oilite Bearings | Metric | AF 10 16 10 | 10 | 16 | 10 | French | |
| Oilite Bearings | Metric | AF 10 16 16 | 10 | 16 | 16 | French | |
| Oilite Bearings | Metric | AF 10 16 20 | 10 | 16 | 20 | French | |
| Oilite Bearings | Metric | AF 10 16 25 | 10 | 16 | 25 | French | |
| Oilite Bearings | Metric | AF 12 15 12 | 12 | 15 | 12 | French | |
| Oilite Bearings | Metric | AF 12 15 16 | 12 | 15 | 16 | French | |
| Oilite Bearings | Metric | AF 12 15 20 | 12 | 15 | 20 | French | |
| Oilite Bearings | Metric | AF 12 15 25 | 12 | 15 | 25 | French | |
| Oilite Bearings | Metric | AF 12 16 12 | 12 | 16 | 12 | French | |
| Oilite Bearings | Metric | AF 12 16 16 | 12 | 16 | 16 | French | |
| Oilite Bearings | Metric | AF 12 16 20 | 12 | 16 | 20 | French | |
| Oilite Bearings | Metric | AF 12 16 25 | 12 | 16 | 25 | French | |
| Oilite Bearings | Metric | AF 12 17 12 | 12 | 17 | 12 | French | |
| Oilite Bearings | Metric | AF 12 17 16 | 12 | 17 | 16 | French | |
| Oilite Bearings | Metric | AF 12 17 20 | 12 | 17 | 20 | French | |
| Oilite Bearings | Metric | AF 12 17 25 | 12 | 17 | 25 | French | |
| Oilite Bearings | Metric | AF 12 18 12 | 12 | 18 | 12 | French | |
| Oilite Bearings | Metric | AF 12 18 16 | 12 | 18 | 16 | French | |
| Oilite Bearings | Metric | AF 12 18 20 | 12 | 18 | 20 | French | |
| Oilite Bearings | Metric | AF 12 18 25 | 12 | 18 | 25 | French | |
| Oilite Bearings | Metric | AF 14 18 14 | 14 | 18 | 14 | French | |
| Oilite Bearings | Metric | AF 14 18 18 | 14 | 18 | 18 | French | |
| Oilite Bearings | Metric | AF 14 18 22 | 14 | 18 | 22 | French | |
| Oilite Bearings | Metric | AF 14 18 28 | 14 | 18 | 28 | French | |
| Oilite Bearings | Metric | AF 14 20 14 | 14 | 20 | 14 | French | |
| Oilite Bearings | Metric | AF 14 20 18 | 14 | 20 | 18 | French | |
| Oilite Bearings | Metric | AF 14 20 22 | 14 | 20 | 22 | French | |
| Oilite Bearings | Metric | AF 14 20 28 | 14 | 29 | 28 | French | |
| Oilite Bearings | Metric | AF 15 19 16 | 15 | 19 | 16 | French | |
| Oilite Bearings | Metric | AF 15 19 20 | 15 | 19 | 20 | French | |
| Oilite Bearings | Metric | AF 15 19 25 | 15 | 19 | 25 | French | |
| Oilite Bearings | Metric | AF 15 19 32 | 15 | 19 | 32 | French | |
| Oilite Bearings | Metric | AF 15 21 16 | 15 | 21 | 16 | French | |
| Oilite Bearings | Metric | AF 15 21 20 | 15 | 21 | 20 | French | |
| Oilite Bearings | Metric | AF 15 21 25 | 15 | 21 | 25 | French | |
| Oilite Bearings | Metric | AF 15 21 32 | 15 | 21 | 32 | French | |
| Oilite Bearings | Metric | AF 16 20 16 | 16 | 20 | 16 | French | |
| Oilite Bearings | Metric | AF 16 20 20 | 16 | 20 | 20 | French | |
| Oilite Bearings | Metric | AF 16 20 25 | 16 | 20 | 25 | French | |
| Oilite Bearings | Metric | AF 16 20 32 | 16 | 20 | 32 | French | |
| Oilite Bearings | Metric | AF 16 22 16 | 16 | 22 | 16 | French | |
| Oilite Bearings | Metric | AF 16 22 20 | 16 | 22 | 20 | French | |
| Oilite Bearings | Metric | AF 16 22 25 | 16 | 22 | 25 | French | |
| Oilite Bearings | Metric | AF 16 22 32 | 16 | 22 | 32 | French | |
| Oilite Bearings | Metric | AF 18 22 18 | 18 | 22 | 18 | French | |
| Oilite Bearings | Metric | AF 18 22 22 | 18 | 22 | 22 | French | |
| Oilite Bearings | Metric | AF 18 22 28 | 18 | 22 | 28 | French | |
| Oilite Bearings | Metric | AF 18 22 36 | 18 | 22 | 36 | French | |
| Oilite Bearings | Metric | AF 18 24 18 | 18 | 24 | 18 | French | |
| Oilite Bearings | Metric | AF 18 24 22 | 18 | 24 | 22 | French | |
| Oilite Bearings | Metric | AF 18 24 28 | 18 | 24 | 28 | French | |
| Oilite Bearings | Metric | AF 18 24 36 | 18 | 24 | 36 | French | |
| Oilite Bearings | Metric | AF 18 24 18 | 18 | 24 | 18 | French | |
| Oilite Bearings | Metric | AF 18 25 18 | 18 | 25 | 18 | French | |
| Oilite Bearings | Metric | AF 18 25 22 | 18 | 25 | 22 | French | |
| Oilite Bearings | Metric | AF 18 25 28 | 18 | 25 | 28 | French | |
| Oilite Bearings | Metric | AF 18 25 36 | 18 | 25 | 36 | French | |
| Oilite Bearings | Metric | AF 20 24 16 | 20 | 24 | 16 | French | |
| Oilite Bearings | Metric | AF 20 24 20 | 20 | 24 | 20 | French | |
| Oilite Bearings | Metric | AF 20 24 25 | 20 | 24 | 25 | French | |
| Oilite Bearings | Metric | AF 20 24 30 | 20 | 24 | 30 | French | |
| Oilite Bearings | Metric | AF 20 24 32 | 20 | 24 | 32 | French | |
| Oilite Bearings | Metric | AF 20 25 16 | 20 | 25 | 16 | French | |
| Oilite Bearings | Metric | AF 20 25 20 | 20 | 25 | 20 | French | |
| Oilite Bearings | Metric | AF 20 25 25 | 20 | 25 | 25 | French | |
| Oilite Bearings | Metric | AF 20 25 32 | 20 | 25 | 32 | French | |
| Oilite Bearings | Metric | AF 20 26 16 | 20 | 26 | 16 | French | |
| Oilite Bearings | Metric | AF 20 26 20 | 20 | 26 | 20 | French | |
| Oilite Bearings | Metric | AF 20 26 25 | 20 | 26 | 25 | French | |
| Oilite Bearings | Metric | AF 20 26 32 | 20 | 26 | 32 | French | |
| Oilite Bearings | Metric | AF 20 27 16 | 20 | 27 | 16 | French | |
| Oilite Bearings | Metric | AF 20 27 20 | 20 | 27 | 20 | French | |
| Oilite Bearings | Metric | AF 20 27 25 | 20 | 27 | 25 | French | |
| Oilite Bearings | Metric | AF 20 27 32 | 20 | 27 | 32 | French | |
| Oilite Bearings | Metric | AF 20 28 16 | 20 | 28 | 16 | French | |
| Oilite Bearings | Metric | AF 20 28 20 | 20 | 28 | 20 | French | |
| Oilite Bearings | Metric | AF 20 28 25 | 20 | 28 | 25 | French | |
| Oilite Bearings | Metric | AF 20 28 32 | 20 | 28 | 32 | French | |
| Oilite Bearings | Metric | AF 22 27 18 | 22 | 27 | 18 | French | |
| Oilite Bearings | Metric | AF 22 27 22 | 22 | 27 | 22 | French | |
| Oilite Bearings | Metric | AF 22 27 28 | 22 | 27 | 28 | French | |
| Oilite Bearings | Metric | AF 22 27 36 | 22 | 27 | 36 | French | |
| Oilite Bearings | Metric | AF 22 28 18 | 22 | 28 | 18 | French | |
| Oilite Bearings | Metric | AF 22 28 22 | 22 | 28 | 22 | French | |
| Oilite Bearings | Metric | AF 22 28 28 | 22 | 28 | 28 | French | |
| Oilite Bearings | Metric | AF 22 28 36 | 22 | 28 | 36 | French | |
| Oilite Bearings | Metric | AF 22 29 18 | 22 | 29 | 18 | French | |
| Oilite Bearings | Metric | AF 22 29 22 | 22 | 29 | 22 | French | |
| Oilite Bearings | Metric | AF 22 29 18 | 22 | 29 | 18 | French | |
| Oilite Bearings | Metric | AF 22 29 22 | 22 | 29 | 22 | French | |
| Oilite Bearings | Metric | AF 22 29 28 | 22 | 29 | 28 | French | |
| Oilite Bearings | Metric | AF 22 29 36 | 22 | 29 | 36 | French | |
| Oilite Bearings | Metric | AF 25 30 20 | 25 | 30 | 20 | French | |
| Oilite Bearings | Metric | AF 25 30 25 | 25 | 30 | 25 | French | |
| Oilite Bearings | Metric | AF 25 30 32 | 25 | 30 | 32 | French | |
| Oilite Bearings | Metric | AF 25 30 40 | 25 | 30 | 40 | French | |
| Oilite Bearings | Metric | AF 25 32 20 | 25 | 32 | 20 | French | |
| Oilite Bearings | Metric | AF 25 32 25 | 25 | 32 | 25 | French | |
| Oilite Bearings | Metric | AF 25 32 32 | 25 | 32 | 32 | French | |
| Oilite Bearings | Metric | AF 25 32 40 | 25 | 32 | 40 | French | |
| Oilite Bearings | Metric | AF 28 32 22 | 28 | 32 | 22 | French | |
| Oilite Bearings | Metric | AF 28 32 28 | 28 | 32 | 28 | French | |
| Oilite Bearings | Metric | AF 28 32 36 | 28 | 32 | 36 | French | |
| Oilite Bearings | Metric | AF 28 32 45 | 28 | 32 | 45 | French | |
| Oilite Bearings | Metric | AF 28 33 22 | 28 | 33 | 22 | French | |
| Oilite Bearings | Metric | AF 28 33 28 | 28 | 33 | 28 | French | |
| Oilite Bearings | Metric | AF 28 33 36 | 28 | 33 | 36 | French | |
| Oilite Bearings | Metric | AF 28 33 45 | 28 | 33 | 45 | French | |
| Oilite Bearings | Metric | AF 28 36 22 | 28 | 36 | 22 | French | |
| Oilite Bearings | Metric | AF 28 36 28 | 28 | 36 | 28 | French | |
| Oilite Bearings | Metric | AF 28 36 36 | 28 | 36 | 36 | French | |
| Oilite Bearings | Metric | AF 28 36 45 | 28 | 36 | 45 | French | |
| Oilite Bearings | Metric | AF 30 38 24 | 30 | 38 | 24 | French | |
| Oilite Bearings | Metric | AF 30 38 30 | 30 | 38 | 30 | French | |
| Oilite Bearings | Metric | AF 30 38 38 | 30 | 38 | 38 | French | |
| Oilite Bearings | Metric | AF 32 38 20 | 32 | 38 | 20 | French | |
| Oilite Bearings | Metric | AF 32 38 25 | 32 | 38 | 25 | French | |
| Oilite Bearings | Metric | AF 32 38 32 | 32 | 38 | 32 | French | |
| Oilite Bearings | Metric | AF 32 38 40 | 32 | 38 | 40 | French | |
| Oilite Bearings | Metric | AF 32 38 50 | 32 | 38 | 50 | French | |
| Oilite Bearings | Metric | AF 32 40 20 | 32 | 40 | 20 | French | |
| Oilite Bearings | Metric | AF 32 40 25 | 32 | 40 | 25 | French | |
| Oilite Bearings | Metric | AF 32 40 32 | 32 | 40 | 32 | French | |
| Oilite Bearings | Metric | AF 32 40 40 | 32 | 40 | 40 | French | |
| Oilite Bearings | Metric | AF 32 40 50 | 32 | 40 | 50 | French | |
| Oilite Bearings | Metric | AF 35 44 22 | 35 | 44 | 22 | French | |
| Oilite Bearings | Metric | AF 35 44 28 | 35 | 44 | 28 | French | |
| Oilite Bearings | Metric | AF 35 44 35 | 35 | 44 | 35 | French | |
| Oilite Bearings | Metric | AF 35 45 25 | 35 | 45 | 25 | French | |
| Oilite Bearings | Metric | AF 35 45 35 | 35 | 45 | 35 | French | |
| Oilite Bearings | Metric | AF 35 45 40 | 35 | 45 | 40 | French | |
| Oilite Bearings | Metric | AF 35 45 50 | 35 | 45 | 50 | French | |
| Oilite Bearings | Metric | AF 36 42 22 | 36 | 42 | 22 | French | |
| Oilite Bearings | Metric | AF 36 42 28 | 36 | 42 | 28 | French | |
| Oilite Bearings | Metric | AF 36 42 36 | 36 | 42 | 36 | French | |
| Oilite Bearings | Metric | AF 36 42 45 | 36 | 42 | 45 | French | |
| Oilite Bearings | Metric | AF 36 45 22 | 36 | 45 | 22 | French | |
| Oilite Bearings | Metric | AF 36 45 28 | 36 | 45 | 28 | French | |
| Oilite Bearings | Metric | AF 36 45 36 | 36 | 45 | 36 | French | |
| Oilite Bearings | Metric | AF 36 45 45 | 36 | 45 | 45 | French | |
| Oilite Bearings | Metric | AF 38 44 25 | 38 | 44 | 25 | French | |
| Oilite Bearings | Metric | AF 38 44 35 | 38 | 44 | 35 | French | |
| Oilite Bearings | Metric | AF 38 44 45 | 38 | 44 | 45 | French | |
| Oilite Bearings | Metric | AF 40 46 25 | 40 | 46 | 25 | French | |
| Oilite Bearings | Metric | AF 40 46 32 | 40 | 46 | 32 | French | |
| Oilite Bearings | Metric | AF 40 46 40 | 40 | 46 | 40 | French | |
| Oilite Bearings | Metric | AF 40 46 50 | 40 | 46 | 50 | French | |
| Oilite Bearings | Metric | AF 40 50 25 | 40 | 50 | 25 | French | |
| Oilite Bearings | Metric | AF 40 50 32 | 40 | 50 | 32 | French | |
| Oilite Bearings | Metric | AF 40 50 40 | 40 | 50 | 40 | French | |
| Oilite Bearings | Metric | AF 40 50 50 | 40 | 50 | 50 | French | |
| Oilite Bearings | Metric | AF 45 51 28 | 45 | 51 | 28 | French | |
| Oilite Bearings | Metric | AF 45 51 36 | 45 | 51 | 36 | French | |
| Oilite Bearings | Metric | AF 45 51 45 | 45 | 51 | 45 | French | |
| Oilite Bearings | Metric | AF 45 51 56 | 45 | 51 | 56 | French | |
| Oilite Bearings | Metric | AF 45 55 35 | 45 | 55 | 35 | French | |
| Oilite Bearings | Metric | AF 45 55 45 | 45 | 55 | 45 | French | |
| Oilite Bearings | Metric | AF 45 55 55 | 45 | 55 | 55 | French | |
| Oilite Bearings | Metric | AF 45 55 65 | 45 | 55 | 65 | French | |
| Oilite Bearings | Metric | AF 45 56 28 | 45 | 56 | 28 | French | |
| Oilite Bearings | Metric | AF 45 56 36 | 45 | 56 | 36 | French | |
| Oilite Bearings | Metric | AF 45 56 45 | 45 | 56 | 45 | French | |
| Oilite Bearings | Metric | AF 45 56 56 | 45 | 56 | 56 | French | |
| Oilite Bearings | Metric | AF 50 56 32 | 50 | 56 | 32 | French | |
| Oilite Bearings | Metric | AF 50 56 40 | 50 | 56 | 40 | French | |
| Oilite Bearings | Metric | AF 50 56 50 | 50 | 56 | 50 | French | |
| Oilite Bearings | Metric | AF 50 56 63 | 50 | 56 | 63 | French | |
| Oilite Bearings | Metric | AF 50 60 32 | 50 | 60 | 32 | French | |
| Oilite Bearings | Metric | AF 50 60 40 | 50 | 60 | 40 | French | |
| Oilite Bearings | Metric | AF 50 60 50 | 50 | 60 | 50 | French | |
| Oilite Bearings | Metric | AF 50 60 63 | 50 | 60 | 63 | French | |
| Oilite Bearings | Metric | AF 55 65 40 | 55 | 65 | 40 | French | |
| Oilite Bearings | Metric | AF 55 65 55 | 55 | 65 | 55 | French | |
| Oilite Bearings | Metric | AF 55 65 70 | 55 | 65 | 70 | French | |
| Oilite Bearings | Metric | AF 60 70 50 | 60 | 70 | 50 | French | |
| Oilite Bearings | Metric | AF 60 70 60 | 60 | 70 | 60 | French | |
| Oilite Bearings | Metric | AF 60 72 50 | 60 | 72 | 50 | French | |
| Oilite Bearings | Metric | AF 60 72 60 | 60 | 72 | 60 | French | |
| Oilite Bearings | Metric | AF 60 72 70 | 60 | 72 | 70 | French | |
| Oilite Bearings | Metric | AF 60 80 90 | 60 | 80 | 90 | French | |
| Oilite Bearings | Metric | AF 63 70 40 | 63 | 70 | 40 | French | |
| Oilite Bearings | Metric | AF 63 70 50 | 63 | 70 | 50 | French | |
| Oilite Bearings | Imperial | AI 02 03 02 | 0.125 | 0.1875 | 0.125 | ||
| Oilite Bearings | Imperial | AI 02 04 04 | 0.125 | 0.25 | 0.25 | ||
| Oilite Bearings | Imperial | AI 03 04 04 T | 0.1875 | 0.25 | 0.25 | ||
| Oilite Bearings | Imperial | AI 03 04 05 | 0.1875 | 0.25 | 0.3125 | ||
| Oilite Bearings | Imperial | AI 03 04 06 | 0.1875 | 0.25 | 0.375 | ||
| Oilite Bearings | Imperial | AI 03 04 10 | 0.1875 | 0.25 | 0.625 | ||
| Oilite Bearings | Imperial | AI 03 05 03 | 0.1875 | 0.3125 | 0.1875 | ||
| Oilite Bearings | Imperial | AI 03 05 04 | 0.1875 | 0.3125 | 0.25 | ||
| Oilite Bearings | Imperial | AI 03 05 05 | 0.1875 | 0.3125 | 0.3125 | ||
| Oilite Bearings | Imperial | AI 03 05 06 | 0.1875 | 0.3125 | 0.375 | ||
| Oilite Bearings | Imperial | AI 03 05 08 T | 0.1875 | 0.3125 | 0.5 | ||
| Oilite Bearings | Imperial | AI 03 05 10 | 0.1875 | 0.3125 | 0.625 | ||
| Oilite Bearings | Imperial | AI 03 05 12 | 0.1875 | 0.3125 | 0.75 | ||
| Oilite Bearings | Imperial | AI 03 06 12 | 0.1875 | 0.375 | 0.75 | ||
| Oilite Bearings | Imperial | AI 04 06 04 | 0.25 | 0.375 | 0.25 | ||
| Oilite Bearings | Imperial | AI 04 06 06 | 0.25 | 0.375 | 0.375 | ||
| Oilite Bearings | Imperial | AI 04 06 08 T | 0.25 | 0.375 | 0.5 | ||
| Oilite Bearings | Imperial | AI 04 06 10 | 0.25 | 0.375 | 0.625 | ||
| Oilite Bearings | Imperial | AI 04 06 12 | 0.25 | 0.375 | 0.75 | ||
| Oilite Bearings | Imperial | AI 04 06 16 | 0.25 | 0.375 | 1 | ||
| Oilite Bearings | Imperial | AI 04 07 06 | 0.25 | 0.4375 | 0.375 | ||
| Oilite Bearings | Imperial | AI 04 07 08 | 0.25 | 0.4375 | 0.5 | ||
| Oilite Bearings | Imperial | AI 04 07 10 | 0.25 | 0.4375 | 0.625 | ||
| Oilite Bearings | Imperial | AI 04 07 12 | 0.25 | 0.4375 | 0.75 | ||
| Oilite Bearings | Imperial | AI 04 08 06 | 0.25 | 0.5 | 0.375 | ||
| Oilite Bearings | Imperial | AI 04 08 08 | 0.25 | 0.5 | 0.5 | ||
| Oilite Bearings | Imperial | AI 04 08 12 | 0.25 | 0.5 | 0.75 | ||
| Oilite Bearings | Imperial | AI 05 06 08 | 0.3125 | 0.375 | 0.5 | ||
| Oilite Bearings | Imperial | AI 05 06 10 | 0.3125 | 0.375 | 0.625 | ||
| Oilite Bearings | Imperial | AI 05 07 04 | 0.3125 | 0.4375 | 0.25 | ||
| Oilite Bearings | Imperial | AI 05 07 05 | 0.3125 | 0.4375 | 0.3125 | ||
| Oilite Bearings | Imperial | AI 05 07 06 | 0.3125 | 0.4375 | 0.375 | ||
| Oilite Bearings | Imperial | AI 05 07 08 | 0.3125 | 0.4375 | 0.5 | ||
| Oilite Bearings | Imperial | AI 05 07 09 T | 0.3125 | 0.4375 | 0.5625 | ||
| Oilite Bearings | Imperial | AI 05 07 10 | 0.3125 | 0.4375 | 0.625 | ||
| Oilite Bearings | Imperial | AI 05 07 12 | 0.3125 | 0.4375 | 0.75 | ||
| Oilite Bearings | Imperial | AI 05 07 16 | 0.3125 | 0.4375 | 1 | ||
| Oilite Bearings | Imperial | AI 05 07 20 | 0.3125 | 0.4375 | 1.25 | ||
| Oilite Bearings | Imperial | AI 05 07 22 | 0.3125 | 0.4375 | 1.375 | ||
| Oilite Bearings | Imperial | AI 05 08 04 | 0.3125 | 0.5 | 0.25 | ||
| Oilite Bearings | Imperial | AI 05 08 06 | 0.3125 | 0.5 | 0.375 | ||
| Oilite Bearings | Imperial | AI 05 08 08 | 0.3125 | 0.5 | 0.5 | ||
| Oilite Bearings | Imperial | AI 05 08 10 | 0.3125 | 0.5 | 0.625 | ||
| Oilite Bearings | Imperial | AI 05 08 12 | 0.3125 | 0.5 | 0.75 | ||
| Oilite Bearings | Imperial | AI 05 08 16 T | 0.3125 | 0.5 | 1 | ||
| Oilite Bearings | Imperial | AI 06 07 08 | 0.375 | 0.4375 | 0.5 | ||
| Oilite Bearings | Imperial | AI 06 07 12 | 0.375 | 0.4375 | 0.75 | ||
| Oilite Bearings | Imperial | AI 06 08 05 | 0.375 | 0.5 | 0.3125 | ||
| Oilite Bearings | Imperial | AI 06 08 06 | 0.375 | 0.5 | 0.375 | ||
| Oilite Bearings | Imperial | AI 06 08 07 t | 0.375 | 0.5 | 0.4375 | ||
| Oilite Bearings | Imperial | AI 06 08 08 | 0.375 | 0.5 | 0.5 | ||
| Oilite Bearings | Imperial | AI 06 08 10 | 0.375 | 0.5 | 0.625 | ||
| Oilite Bearings | Imperial | AI 06 08 12 | 0.375 | 0.5 | 0.75 | ||
| Oilite Bearings | Imperial | AI 06 08 14 | 0.375 | 0.5 | 0.875 | ||
| Oilite Bearings | Imperial | AI 06 08 16 | 0.375 | 0.5 | 1 | ||
| Oilite Bearings | Imperial | AI 06 08 18 | 0.375 | 0.5 | 1.125 | ||
| Oilite Bearings | Imperial | AI 06 08 20 | 0.375 | 0.5 | 1.25 | ||
| Oilite Bearings | Imperial | AI 06 09 06 | 0.375 | 0.5625 | 0.375 | ||
| Oilite Bearings | Imperial | AI 06 09 16 | 0.375 | 0.5625 | 1 | ||
| Oilite Bearings | Imperial | AI 06 10 06 | 0.375 | 0.625 | 0.375 | ||
| Oilite Bearings | Imperial | AI 06 10 08 | 0.375 | 0.625 | 0.5 | ||
| Oilite Bearings | Imperial | AI 06 10 10 T | 0.375 | 0.625 | 0.625 | ||
| Oilite Bearings | Imperial | AI 06 10 12 | 0.375 | 0.625 | 0.75 | ||
| Oilite Bearings | Imperial | AI 06 10 14 | 0.375 | 0.625 | 0.875 | ||
| Oilite Bearings | Imperial | AI 06 12 08 | 0.375 | 0.75 | 0.5 | ||
| Oilite Bearings | Imperial | AI 06 12 16 | 0.375 | 0.75 | 1 | ||
| Oilite Bearings | Imperial | AI 06 12 20 | 0.375 | 0.75 | 1.25 | ||
| Oilite Bearings | Imperial | AI 07 09 06 | 0.4375 | 0.5625 | 0.375 | ||
| Oilite Bearings | Imperial | AI 07 09 08 | 0.4375 | 0.5625 | 0.5 | ||
| Oilite Bearings | Imperial | AI 07 09 10 | 0.4375 | 0.5625 | 0.625 | ||
| Oilite Bearings | Imperial | AI 07 09 12 | 0.4375 | 0.5625 | 0.75 | ||
| Oilite Bearings | Imperial | AI 07 09 13 | 0.4375 | 0.5625 | 0.8125 | ||
| Oilite Bearings | Imperial | AI 07 09 16 | 0.4375 | 0.5625 | 1 | ||
| Oilite Bearings | Imperial | AI 07 09 20 | 0.4375 | 0.5625 | 1.25 | ||
| Oilite Bearings | Imperial | AI 07 10 10 | 0.4375 | 0.625 | 0.625 | ||
| Oilite Bearings | Imperial | AI 07 10 16 | 0.4375 | 0.625 | 1 | ||
| Oilite Bearings | Imperial | AI 07 11 06 | 0.4375 | 0.6875 | 0.375 | ||
| Oilite Bearings | Imperial | AI 07 11 08 | 0.4375 | 0.6875 | 0.5 | ||
| Oilite Bearings | Imperial | AI 07 11 12 | 0.4375 | 0.6875 | 0.75 | ||
| Oilite Bearings | Imperial | AI 07 11 20 | 0.4375 | 0.6875 | 1.25 | ||
| Oilite Bearings | Imperial | AI 08 10 04 | 0.5 | 0.625 | 0.25 | ||
| Oilite Bearings | Imperial | AI 08 10 06 | 0.5 | 0.625 | 0.375 | ||
| Oilite Bearings | Imperial | AI 08 10 08 | 0.5 | 0.625 | 0.5 | ||
| Oilite Bearings | Imperial | AI 08 10 10 | 0.5 | 0.625 | 0.625 | ||
| Oilite Bearings | Imperial | AI 08 10 12 | 0.5 | 0.625 | 0.75 | ||
| Oilite Bearings | Imperial | AI 08 10 14 | 0.5 | 0.625 | 0.875 | ||
| Oilite Bearings | Imperial | AI 08 10 16 | 0.5 | 0.625 | 1 | ||
| Oilite Bearings | Imperial | AI 08 10 20 | 0.5 | 0.625 | 1.25 | ||
| Oilite Bearings | Imperial | AI 08 10 24 | 0.5 | 0.625 | 1.5 | ||
| Oilite Bearings | Imperial | AI 08 11 08 | 0.5 | 0.6875 | 0.5 | ||
| Oilite Bearings | Imperial | AI 08 11 10 | 0.5 | 0.6875 | 0.625 | ||
| Oilite Bearings | Imperial | AI 08 11 12 T | 0.5 | 0.6875 | 0.75 | ||
| Oilite Bearings | Imperial | AI 08 11 14 | 0.5 | 0.6875 | 0.875 | ||
| Oilite Bearings | Imperial | AI 08 11 16 | 0.5 | 0.6875 | 1 | ||
| Oilite Bearings | Imperial | AI 08 11 20 | 0.5 | 0.6875 | 1.25 | ||
| Oilite Bearings | Imperial | AI 08 12 08 | 0.5 | 0.75 | 0.5 | ||
| Oilite Bearings | Imperial | AI 08 12 10 | 0.5 | 0.75 | 0.625 | ||
| Oilite Bearings | Imperial | AI 08 12 12 | 0.5 | 0.75 | 0.75 | ||
| Oilite Bearings | Imperial | AI 08 12 14 | 0.5 | 0.75 | 0.875 | ||
| Oilite Bearings | Imperial | AI 08 12 16 | 0.5 | 0.75 | 1 | ||
| Oilite Bearings | Imperial | AI 08 12 18 | 0.5 | 0.75 | 1.125 | ||
| Oilite Bearings | Imperial | AI 08 12 20 | 0.5 | 0.75 | 1.25 | ||
| Oilite Bearings | Imperial | AI 08 12 24 | 0.5 | 0.75 | 1.5 | ||
| Oilite Bearings | Imperial | AI 08 12 32 | 0.5 | 0.75 | 2 | ||
| Oilite Bearings | Imperial | AI 08 14 08 | 0.5 | 0.875 | 0.5 | ||
| Oilite Bearings | Imperial | AI 08 14 24 | 0.5 | 0.875 | 1.5 | ||
| Oilite Bearings | Imperial | AI 08 16 16 | 0.5 | 1 | 1 | ||
| Oilite Bearings | Imperial | AI 09 11 08 | 0.5625 | 0.6875 | 0.5 | ||
| Oilite Bearings | Imperial | AI 09 11 10 | 0.5625 | 0.6875 | 0.625 | ||
| Oilite Bearings | Imperial | AI 09 11 12 | 0.5625 | 0.6875 | 0.75 | ||
| Oilite Bearings | Imperial | AI 09 11 16 | 0.5625 | 0.6875 | 1 | ||
| Oilite Bearings | Imperial | AI 09 11 20 | 0.5625 | 0.6875 | 1.25 | ||
| Oilite Bearings | Imperial | AI 09 12 16 | 0.5625 | 0.75 | 1 | ||
| Oilite Bearings | Imperial | AI 09 13 12 | 0.5625 | 0.8125 | 0.75 | ||
| Oilite Bearings | Imperial | AI 09 13 16 | 0.5625 | 0.8125 | 1 | ||
| Oilite Bearings | Imperial | AI 10 12 08 | 0.625 | 0.75 | 0.5 | ||
| Oilite Bearings | Imperial | AI 10 12 10 | 0.625 | 0.75 | 0.625 | ||
| Oilite Bearings | Imperial | AI 10 12 12 | 0.625 | 0.75 | 0.75 | ||
| Oilite Bearings | Imperial | AI 10 12 14 | 0.625 | 0.75 | 0.875 | ||
| Oilite Bearings | Imperial | AI 10 12 16 | 0.625 | 0.75 | 1 | ||
| Oilite Bearings | Imperial | AI 10 12 18 | 0.625 | 0.75 | 1.125 | ||
| Oilite Bearings | Imperial | AI 10 12 20 | 0.625 | 0.75 | 1.25 | ||
| Oilite Bearings | Imperial | AI 10 12 24 | 0.625 | 0.75 | 1.5 | ||
| Oilite Bearings | Imperial | AI 10 13 08 | 0.625 | 0.8125 | 0.5 | ||
| Oilite Bearings | Imperial | AI 10 13 12 | 0.625 | 0.8125 | 0.75 | ||
| Oilite Bearings | Imperial | AI 10 13 16 | 0.625 | 0.8125 | 1 | ||
| Oilite Bearings | Imperial | AI 10 13 20 T | 0.625 | 0.8125 | 1.25 | ||
| Oilite Bearings | Imperial | AI 10 13 22 | 0.625 | 0.8125 | 1.375 | ||
| Oilite Bearings | Imperial | AI 10 14 08 | 0.625 | 0.875 | 0.5 | ||
| Oilite Bearings | Imperial | AI 10 14 10 | 0.625 | 0.875 | 0.625 | ||
| Oilite Bearings | Imperial | AI 10 14 12 | 0.625 | 0.875 | 0.75 | ||
| Oilite Bearings | Imperial | AI 10 14 14 | 0.625 | 0.875 | 0.875 | ||
| Oilite Bearings | Imperial | AI 10 14 16 | 0.625 | 0.875 | 1 | ||
| Oilite Bearings | Imperial | AI 10 14 18 | 0.625 | 0.875 | 1.125 | ||
| Oilite Bearings | Imperial | AI 10 14 20 | 0.625 | 0.875 | 1.25 | ||
| Oilite Bearings | Imperial | AI 10 14 24 | 0.625 | 0.875 | 1.5 | ||
| Oilite Bearings | Imperial | AI 10 16 16 | 0.625 | 1 | 1 | ||
| Oilite Bearings | Imperial | AI 11 13 16 | 0.6875 | 0.8125 | 1 | ||
| Oilite Bearings | Imperial | AI 11 15 16 | 0.6875 | 0.9375 | 1 | ||
| Oilite Bearings | Imperial | AI 11 15 20 T | 0.6875 | 0.9375 | 1.25 | ||
| Oilite Bearings | Imperial | AI 12 14 08 | 0.75 | 0.875 | 0.5 | ||
| Oilite Bearings | Imperial | AI 12 14 10 | 0.75 | 0.875 | 0.625 | ||
| Oilite Bearings | Imperial | AI 12 14 12 | 0.75 | 0.875 | 0.75 | ||
| Oilite Bearings | Imperial | AI 12 14 14 | 0.75 | 0.875 | 0.875 | ||
| Oilite Bearings | Imperial | AI 12 14 16 | 0.75 | 0.875 | 1 | ||
| Oilite Bearings | Imperial | AI 12 14 18 | 0.75 | 0.875 | 1.125 | ||
| Oilite Bearings | Imperial | AI 12 14 20 | 0.75 | 0.875 | 1.25 | ||
| Oilite Bearings | Imperial | AI 12 15 12 | 0.75 | 0.9375 | 0.75 | ||
| Oilite Bearings | Imperial | AI 12 15 16 | 0.75 | 0.9375 | 1 | ||
| Oilite Bearings | Imperial | AI 12 16 08 | 0.75 | 1 | 0.5 | ||
| Oilite Bearings | Imperial | AI 12 16 10 | 0.75 | 1 | 0.625 | ||
| Oilite Bearings | Imperial | AI 12 16 12 T | 0.75 | 1 | 0.75 | ||
| Oilite Bearings | Imperial | AI 12 16 14 | 0.75 | 1 | 0.875 | ||
| Oilite Bearings | Imperial | AI 12 16 16 | 0.75 | 1 | 1 | ||
| Oilite Bearings | Imperial | AI 12 16 18 T | 0.75 | 1 | 1.125 | ||
| Oilite Bearings | Imperial | AI 12 16 20 | 0.75 | 1 | 1.25 | ||
| Oilite Bearings | Imperial | AI 12 16 22 | 0.75 | 1 | 1.375 | ||
| Oilite Bearings | Imperial | AI 12 16 24 | 0.75 | 1 | 1.5 | ||
| Oilite Bearings | Imperial | AI 12 16 28 | 0.75 | 1 | 1.75 | ||
| Oilite Bearings | Imperial | AI 12 16 32 | 0.75 | 1 | 2 | ||
| Oilite Bearings | Imperial | AI 12 16 34 | 0.75 | 1 | 2.125 | ||
| Oilite Bearings | Imperial | AI 12 16 36 | 0.75 | 1 | 2.25 | ||
| Oilite Bearings | Imperial | AI 12 18 12 | 0.75 | 1.125 | 0.75 | ||
| Oilite Bearings | Imperial | AI 12 18 16 | 0.75 | 1.125 | 1 | ||
| Oilite Bearings | Imperial | AI 12 18 20 | 0.75 | 1.125 | 1.25 | ||
| Oilite Bearings | Imperial | AI 12 20 24 | 0.75 | 1.25 | 1.5 | ||
| Oilite Bearings | Imperial | AI 12 20 32 | 0.75 | 1.25 | 2 | ||
| Oilite Bearings | Imperial | AI 14 16 12 | 0.875 | 1 | 0.75 | ||
| Oilite Bearings | Imperial | AI 14 16 16 | 0.875 | 1 | 1 | ||
| Oilite Bearings | Imperial | AI 14 16 18 | 0.875 | 1 | 1.125 | ||
| Oilite Bearings | Imperial | AI 14 16 20 | 0.875 | 1 | 1.25 | ||
| Oilite Bearings | Imperial | AI 14 16 24 | 0.875 | 1 | 1.5 | ||
| Oilite Bearings | Imperial | AI 14 18 12 | 0.875 | 1.125 | 0.75 | ||
| Oilite Bearings | Imperial | AI 14 18 14 | 0.875 | 1.125 | 0.875 | ||
| Oilite Bearings | Imperial | AI 14 18 16 | 0.875 | 1.125 | 1 | ||
| Oilite Bearings | Imperial | AI 14 18 18 | 0.875 | 1.125 | 1.125 | ||
| Oilite Bearings | Imperial | AI 14 18 20 | 0.875 | 1.125 | 1.25 | ||
| Oilite Bearings | Imperial | AI 14 18 24 | 0.875 | 1.125 | 1.5 | ||
| Oilite Bearings | Imperial | AI 16 18 08 | 1 | 1.125 | 0.5 | ||
| Oilite Bearings | Imperial | AI 16 18 12 | 1 | 1.125 | 0.75 | ||
| Oilite Bearings | Imperial | AI 16 18 16 | 1 | 1.125 | 1 | ||
| Oilite Bearings | Imperial | AI 16 18 20 | 1 | 1.125 | 1.25 | ||
| Oilite Bearings | Imperial | AI 16 18 24 | 1 | 1.125 | 1.5 | ||
| Oilite Bearings | Imperial | AI 16 19 12 | 1 | 1.1875 | 0.75 | ||
| Oilite Bearings | Imperial | AI 16 20 12 | 1 | 1.25 | 0.75 | ||
| Oilite Bearings | Imperial | AI 16 20 14 | 1 | 1.25 | 0.875 | ||
| Oilite Bearings | Imperial | AI 16 20 16 | 1 | 1.25 | 1 | ||
| Oilite Bearings | Imperial | AI 16 20 18 | 1 | 1.25 | 1.125 | ||
| Oilite Bearings | Imperial | AI 16 20 20 | 1 | 1.25 | 1.25 | ||
| Oilite Bearings | Imperial | AI 16 20 22 | 1 | 1.25 | 1.375 | ||
| Oilite Bearings | Imperial | AI 16 20 24 | 1 | 1.25 | 1.5 | ||
| Oilite Bearings | Imperial | AI 16 20 28 | 1 | 1.25 | 1.75 | ||
| Oilite Bearings | Imperial | AI 16 20 32 | 1 | 1.25 | 2 | ||
| Oilite Bearings | Imperial | AI 16 22 16 | 1 | 1.375 | 1 | ||
| Oilite Bearings | Imperial | AI 16 24 16 | 1 | 1.5 | 1 | ||
| Oilite Bearings | Imperial | AI 16 24 24 | 1 | 1.5 | 1.5 | ||
| Oilite Bearings | Imperial | AI 16 24 32 | 1 | 1.5 | 2 | ||
| Oilite Bearings | Imperial | AI 18 20 16 | 1.125 | 1.25 | 1 | ||
| Oilite Bearings | Imperial | AI 18 20 20 | 1.125 | 1.25 | 1.25 | ||
| Oilite Bearings | Imperial | AI 18 22 12 | 1.125 | 1.375 | 0.75 | ||
| Oilite Bearings | Imperial | AI 18 22 14 SO | 1.125 | 1.375 | 0.875 | ||
| Oilite Bearings | Imperial | AI 18 22 16 | 1.125 | 1.375 | 1 | ||
| Oilite Bearings | Imperial | AI 18 22 20 | 1.125 | 1.375 | 1.25 | ||
| Oilite Bearings | Imperial | AI 18 22 24 | 1.125 | 1.375 | 1.5 | ||
| Oilite Bearings | Imperial | AI 18 22 28 | 1.125 | 1.375 | 1.75 | ||
| Oilite Bearings | Imperial | AI 18 22 32 | 1.125 | 1.375 | 2 | ||
| Oilite Bearings | Imperial | AI 18 22 40 | 1.125 | 1.375 | 2.5 | ||
| Oilite Bearings | Imperial | AI 20 24 24 | 1.25 | 1.5 | 1.5 | ||
| Oilite Bearings | Imperial | AI 20 26 16 | 1.25 | 1.625 | 1 | ||
| Oilite Bearings | Imperial | AI 20 26 20 | 1.25 | 1.625 | 1.25 | ||
| Oilite Bearings | Imperial | AI 20 26 24 | 1.25 | 1.625 | 1.5 | ||
| Oilite Bearings | Imperial | AI 20 26 28 | 1.25 | 1.625 | 1.75 | ||
| Oilite Bearings | Imperial | AI 20 26 32 | 1.25 | 1.625 | 2 | ||
| Oilite Bearings | Imperial | AI 20 26 40 | 1.25 | 1.625 | 2.5 | ||
| Oilite Bearings | Imperial | AI 22 26 16 | 1.375 | 1.625 | 1 | ||
| Oilite Bearings | Imperial | AI 22 26 20 | 1.375 | 1.625 | 1.25 | ||
| Oilite Bearings | Imperial | AI 22 26 24 | 1.375 | 1.625 | 1.5 | ||
| Oilite Bearings | Imperial | AI 22 26 28 | 1.375 | 1.625 | 1.75 | ||
| Oilite Bearings | Imperial | AI 22 26 32 | 1.375 | 1.625 | 2 | ||
| Oilite Bearings | Imperial | AI 22 28 24 | 1.375 | 1.75 | 1.5 | ||
| Oilite Bearings | Imperial | AI 22 28 32 | 1.375 | 1.75 | 2 | ||
| Oilite Bearings | Imperial | AI 24 28 16 | 1.5 | 1.75 | 1 | ||
| Oilite Bearings | Imperial | AI 24 28 20 | 1.5 | 1.75 | 1.25 | ||
| Oilite Bearings | Imperial | AI 24 28 24 | 1.5 | 1.75 | 1.5 | ||
| Oilite Bearings | Imperial | AI 24 28 28 | 1.5 | 1.75 | 1.75 | ||
| Oilite Bearings | Imperial | AI 24 28 32 | 1.5 | 1.75 | 2 | ||
| Oilite Bearings | Imperial | AI 24 28 36 | 1.5 | 1.75 | 2.25 | ||
| Oilite Bearings | Imperial | AI 24 28 40 | 1.5 | 1.75 | 2.5 | ||
| Oilite Bearings | Imperial | AI 24 28 48 | 1.5 | 1.75 | 3 | ||
| Oilite Bearings | Imperial | AI 24 30 20 | 1.5 | 1.875 | 1.25 | ||
| Oilite Bearings | Imperial | AI 24 30 24 | 1.5 | 1.875 | 1.5 | ||
| Oilite Bearings | Imperial | AI 24 30 28 | 1.5 | 1.875 | 1.75 | ||
| Oilite Bearings | Imperial | AI 24 30 32 | 1.5 | 1.875 | 2 | ||
| Oilite Bearings | Imperial | AI 24 30 40 | 1.5 | 1.875 | 2.5 | ||
| Oilite Bearings | Imperial | AI 24 32 24 | 1.5 | 2 | 1.5 | ||
| Oilite Bearings | Imperial | AI 24 32 32 | 1.5 | 2 | 2 | ||
| Oilite Bearings | Imperial | AI 24 32 40 | 1.5 | 2 | 2.5 | ||
| Oilite Bearings | Imperial | AI 24 32 48 | 1.5 | 2 | 3 | ||
| Oilite Bearings | Imperial | AI 24 32 56 | 1.5 | 2 | 3.5 | ||
| Oilite Bearings | Imperial | AI 26 33 30 | 1.625 | 2.0625 | 1.875 | ||
| Oilite Bearings | Imperial | AI 26 33 32 | 1.625 | 2.0625 | 2 | ||
| Oilite Bearings | Imperial | AI 26 33 40 | 1.625 | 2.0625 | 2.5 | ||
| Oilite Bearings | Imperial | AI 28 32 20 | 1.75 | 2 | 1.25 | ||
| Oilite Bearings | Imperial | AI 28 32 24 | 1.75 | 2 | 1.5 | ||
| Oilite Bearings | Imperial | AI 28 32 28 | 1.75 | 2 | 1.75 | ||
| Oilite Bearings | Imperial | AI 28 32 32 | 1.75 | 2 | 2 | ||
| Oilite Bearings | Imperial | AI 28 32 36 | 1.75 | 2 | 2.25 | ||
| Oilite Bearings | Imperial | AI 28 32 40 | 1.75 | 2 | 2.5 | ||
| Oilite Bearings | Imperial | AI 28 36 24 | 1.75 | 2.25 | 1.5 | ||
| Oilite Bearings | Imperial | AI 28 36 28 | 1.75 | 2.25 | 1.75 | ||
| Oilite Bearings | Imperial | AI 28 36 32 | 1.75 | 2.25 | 2 | ||
| Oilite Bearings | Imperial | AI 28 36 36 | 1.75 | 2.25 | 2.25 | ||
| Oilite Bearings | Imperial | AI 28 36 40 | 1.75 | 2.25 | 2.5 | ||
| Oilite Bearings | Imperial | AI 32 36 08 | 2 | 2.25 | 0.5 | ||
| Oilite Bearings | Imperial | AI 32 36 16 | 2 | 2.25 | 1 | ||
| Oilite Bearings | Imperial | AI 32 36 24 | 2 | 2.25 | 1.5 | ||
| Oilite Bearings | Imperial | AI 32 36 28 | 2 | 2.25 | 1.75 | ||
| Oilite Bearings | Imperial | AI 32 36 32 | 2 | 2.25 | 2 | ||
| Oilite Bearings | Imperial | AI 32 36 40 | 2 | 2.25 | 2.5 | ||
| Oilite Bearings | Imperial | AI 32 38 24 | 2 | 2.375 | 1.5 | ||
| Oilite Bearings | Imperial | AI 32 38 40 | 2 | 2.375 | 2.5 | ||
| Oilite Bearings | Imperial | AI 32 38 48 | 2 | 2.375 | 3 | ||
| Oilite Bearings | Imperial | AI 32 40 24 | 2 | 2.5 | 1.5 | ||
| Oilite Bearings | Imperial | AI 32 40 32 | 2 | 2.5 | 2 | ||
| Oilite Bearings | Imperial | AI 32 40 40 T | 2 | 2.5 | 2.5 | ||
| Oilite Bearings | Imperial | AI 32 40 48 | 2 | 2.5 | 3 | ||
| Oilite Bearings | Imperial | AI 36 42 40 | 2.25 | 2.625 | 2.5 | ||
| Oilite Bearings | Imperial | AI 36 42 48 | 2.25 | 2.625 | 3 | ||
| Oilite Bearings | Imperial | AI 36 44 24 | 2.25 | 2.75 | 1.5 | ||
| Oilite Bearings | Imperial | AI 36 44 32 | 2.25 | 2.75 | 2 | ||
| Oilite Bearings | Imperial | AI 36 44 40 | 2.25 | 2.75 | 2.5 | ||
| Oilite Bearings | Imperial | AI 36 44 48 | 2.25 | 2.75 | 3 | ||
| Oilite Bearings | Imperial | AI 40 46 40 | 2.5 | 2.875 | 2.5 | ||
| Oilite Bearings | Imperial | AI 40 46 48 | 2.5 | 2.875 | 3 | ||
| Oilite Bearings | Imperial | AI 40 48 24 | 2.5 | 3 | 1.5 | ||
| Oilite Bearings | Imperial | AI 40 48 32 | 2.5 | 3 | 2 | ||
| Oilite Bearings | Imperial | AI 40 48 40 | 2.5 | 3 | 2.5 | ||
| Oilite Bearings | Imperial | AI 40 48 48 | 2.5 | 3 | 3 | ||
| Oilite Bearings | Imperial | AI 48 56 40 | 3 | 3.5 | 2.5 | ||
| Oilite Bearings | Imperial | AI 48 56 48 | 3 | 3.5 | 3 | ||
| Oilite Bearings | Imperial | AI 56 64 48 | 3.5 | 4 | 3 | ||
| Oilite Bearings | Imperial | AI 64 72 64 | 4 | 4.5 | 4 |
