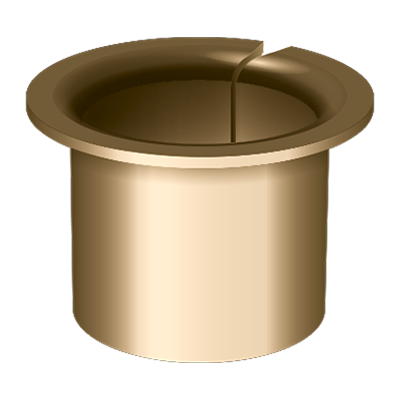

WMUB® Flanged Bearings from Bowman
Based on the trusted WMU wrapped bearing design, the WMUB flanged range features a bronze backing that provides improved load capacity and structural integrity. Combined with a PTFE lining, these bearings deliver reliable performance in dry running environments with reduced friction and wear.
WMUB flanged bearings are available in standard metric and inch sizes. Our in-house machining capabilities also allow us to manufacture customized sizes to suit unique customer specifications.
Matching Bearings
| Material | Unit Measurement | Part Number | Inner Diameter | Outer Diameter | Length | Tolerance Range | Action Button |
|---|---|---|---|---|---|---|---|
| WMU® PTFE Lined Bearings | Metric | WMUBF 05 07 05 - 10 X 1 | 5 | 7 | 5 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 06 08 04 - 12 X 1 | 6 | 8 | 4 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 06 08 07 - 12 X 1 | 6 | 8 | 7 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 06 08 08 - 12 X 1 | 6 | 8 | 8 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 08 10 05.5 - 15 X 1 | 8 | 10 | 5.5 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 08 10 07.5 - 15 X 1 | 8 | 10 | 7.5 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 08 10 09.5 - 15 X 1 | 8 | 10 | 9.5 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 10 12 07 - 18 X 1 | 10 | 12 | 7 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 10 12 09 - 18 X 1 | 10 | 12 | 9 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 10 12 12 - 18 X 1 | 10 | 12 | 12 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 10 12 17 - 18 X 1 | 10 | 12 | 17 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 12 14 07 - 20 X 1 | 12 | 14 | 7 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 12 14 09 - 20 X 1 | 12 | 14 | 9 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 12 14 12 - 20 X 1 | 12 | 14 | 12 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 12 14 17 - 20 X 1 | 12 | 14 | 17 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 14 16 12 - 22 X 1 | 14 | 16 | 12 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 14 16 17 - 22 X 1 | 14 | 16 | 17 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 15 17 09 - 23 X 1 | 15 | 17 | 9 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 15 17 12 - 23 X 1 | 15 | 17 | 12 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 15 17 17 - 23 X 1 | 15 | 17 | 17 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 16 18 12 - 24 X 1 | 16 | 18 | 12 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 16 18 17 - 24 X 1 | 16 | 18 | 17 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 18 20 12 - 26 X 1 | 18 | 20 | 12 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 18 20 17 - 26 X 1 | 18 | 20 | 17 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 18 20 22 - 26 X 1 | 18 | 20 | 22 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 20 23 11.5 - 30 X 1.5 | 20 | 23 | 11.5 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 20 23 16.5 - 30 X 1.5 | 20 | 23 | 16.5 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 20 23 21.5 - 30 X 1.5 | 20 | 23 | 21.5 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 25 28 11.5 - 35 X 1.5 | 25 | 28 | 11.5 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 25 28 16.5 - 35 X 1.5 | 25 | 28 | 16.5 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 25 28 21.5 - 35 X 1.5 | 25 | 28 | 21.5 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 30 34 16 - 42 X 2 | 30 | 34 | 16 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 30 34 26 - 42 X 2 | 30 | 34 | 26 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 35 39 16 - 47 X 2 | 35 | 39 | 16 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 35 39 26 - 47 X 2 | 35 | 39 | 26 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 40 44 16 - 53 X 2 | 40 | 44 | 16 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 40 44 26 - 53 X 2 | 40 | 44 | 26 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 45 50 16 - 58 X 2.5 | 45 | 50 | 16 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 45 50 26 - 58 X 2.5 | 45 | 50 | 26 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 50 55 40 - 65 X 2.5 | 50 | 55 | 40 | ||
| WMU® PTFE Lined Bearings | Metric | WMUBF 60 65 40 - 80 X 2.5 | 60 | 65 | 40 |
